Make/Model

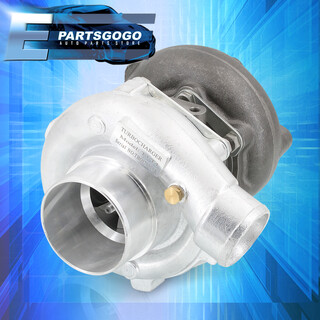

Universal Hybrid T3/T4 Turbo Charger .57 A/R Trim Stage-Iii Turbocharger 300Hp

List price: $249.99
Our price: $143.99
You save: $106.00 ( 42.40 %)

Availability: In stock.

GENERAL
DETAILS

  • Stage-III Turbo
  • Oil Cooled Only!
  • Standard T3 4 Bolt Inlet Flange, Designed to fit most Aftermarket Manifolds and OEM T3 Manifolds.
  • 5psi to 20 Psi Peak Power Performance Output Capability
  • Designed with a Standard 5 bolt T3 Flange
  • Includes internal wastegate port (optional for use)
  • Compressor Specs :
    3" Compressor Inlet
    2.130" Inducer
    2.755" Major
    2" Compressor Outlet
    T04B/T4 Type Compressor Housing
    Compressor .49 A.R.
    Compressor .50 Trim
    8 Blade Type T4 Compressor Wheel
  • Turbine Specs :
    T3 Type Turbine flange
    T3 5 bolt flange
    Turbine .57 A.R.
    2.205" Minor and 2.570" Major Propeller
    T3 Turbine Housing
    2.274" Outlet
    12 Blade Type Turbine
  • Can modified to use external or internal wastegate.
  • Suggested for 1.6L to 2.3L engine up to 150-400HP
  • No Installation Guides Are Included, We Highly Recommend To Seek Professional Installation
  • FITMENT

  • Universal (Designed to fit most Aftermarket Manifolds and OEM T3 Manifolds)
