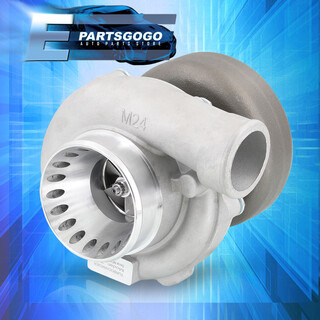

For WRX STI Supra JDM T70 Turbo Charger V Band Dual Port Entry Upgrade T3 .70A/R

• 100% brand new items, never used or installed.
• T70 V-band oil cooled turbocharger + anti-surge ports.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.
• Manufactured from high quality cast aluminum & cast iron for superior strength and durability.
• Capable of boosting horsepower significantly up to 200~500+ HP.
• SPECIFICATIONS (Estimated):
  • Intake:
    • Inlet: 3.90" / 99.06mm
    • Outlet: 2.50" / 64.82mm
  • Compressor:
    • Trim: 75
    • A/R: 0.70 A/R
    • Inducer: 2.226" / 56.54mm
    • Exducer: 2.946" / 74.83mm
  • Turbine:
    • Trim: 60
    • A/R: 0.84 A/R
    • Inducer: 2.894" / 73.50mm
    • Exducer: 2.539" / 64.50mm
• * Designed to be used with an external wastegate. *
• * Exhaust outlet flange will require using 3" / 76.2mm v-band clamp (not included). *
• * Not a direct bolt-on, modifications & additional items required to complete installation. *
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement for:

• Universal Application

** Designed to fit most aftermarket and OEM T3 flange manifolds (dual entry). **
