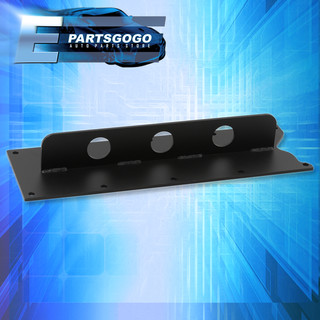

For Chevy LS1 LS2 LS3 LQ4 LQ9 6.0L 6.2 5.3 4.8 V8 Gen 3 LSX LS Engine Lift Plate

• 100% brand new items, never used or installed.
• LS series engine hoist crane lift plate.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.
• Manufactured from high quality CNC machined thick plated steel for superior strength and durability.
• Designed to simplify and assist you with the removal & installation of your engine.
• Plate features three laser-cut holes as lifting points for various chain placements, allowing engine weight to be balanced or offset.
• Offset position is helpful when angling an engine with a transmission still attached, in or out of a vehicle.
• SPECIFICATIONS (Estimated):
  • Length: 18.2" / 462.28mm
  • Width: 6.0" / 152.4mm
  • Lift Hole Diameter: 1.4" / 35.56mm
• * Intake manifold and valley cover tray must be removed in order to properly secure lift plate to the engine block. *
• * Reuse your existing factory LS manifold hardware with the engine lift plate to install. *
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement for:

• 1999-2013 Chevrolet / General Motors 4.8L Gen III IV LS Engines
• 1999-2014 Chevrolet / General Motors 5.3L Gen III IV LS Engines
• 1997-2004 Chevrolet / General Motors 5.7L Gen III LS Engines
• 1999-2014 Chevrolet / General Motors 6.0L Gen III IV LS Engines
• 2007-2014 Chevrolet / General Motors 6.2L Gen IV LS Engines
