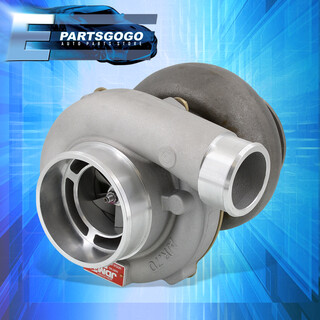

JDM Sport T04Z Water & Oil Cooled Turbo Charger 4-Bolt T4 Inlet Flange 3" V-Band

• 100% brand new items, never used or installed.
• 4-Bolt T4 T04Z water & oil cooled turbocharger with v-band outlet.
• Made by OEM approved manufacturers with materials that meets or exceeds strict OEM requirements.
• Manufactured from high quality cast aluminum & cast iron for superior strength and durability.
• SPECIFICATIONS (Estimated):
  • Exhaust Manifold Flange:
    • T4 4-Bolt
  • Downpipe Exhaust Flange:
    • V-Band Outlet
  • Intake:
    • Inlet: 3.9" / 99.06mm
    • Outlet: 2.2" / 55.88mm
  • Compressor:
    • Trim: 2.52" / 64mm
    • A/R: 0.70 A/R
    • Inducer: 2.622" / 66.6mm
    • Exducer: 3.307" / 84mm
  • Turbine:
    • Trim: 2.99" / 76mm
    • A/R: 1.00 A/R
    • Inducer: 2.898" / 73.6mm
    • Exducer: 2.539" / 64.5mm
• * Doesn't include hardware such as gaskets, bolts, & nuts. Additional modifications and/or items are required to complete installation. *
• No installation guides are included, we highly recommend seeking professional installation.

Compatible/Replacement For:

• Universal Fitment - Not A Direct Bolt-On

** Designed to fit most aftermarket & OEM standard T4 4-bolt turbo manifolds. **
